User Guide for Audio Array AA-21

MANUAL

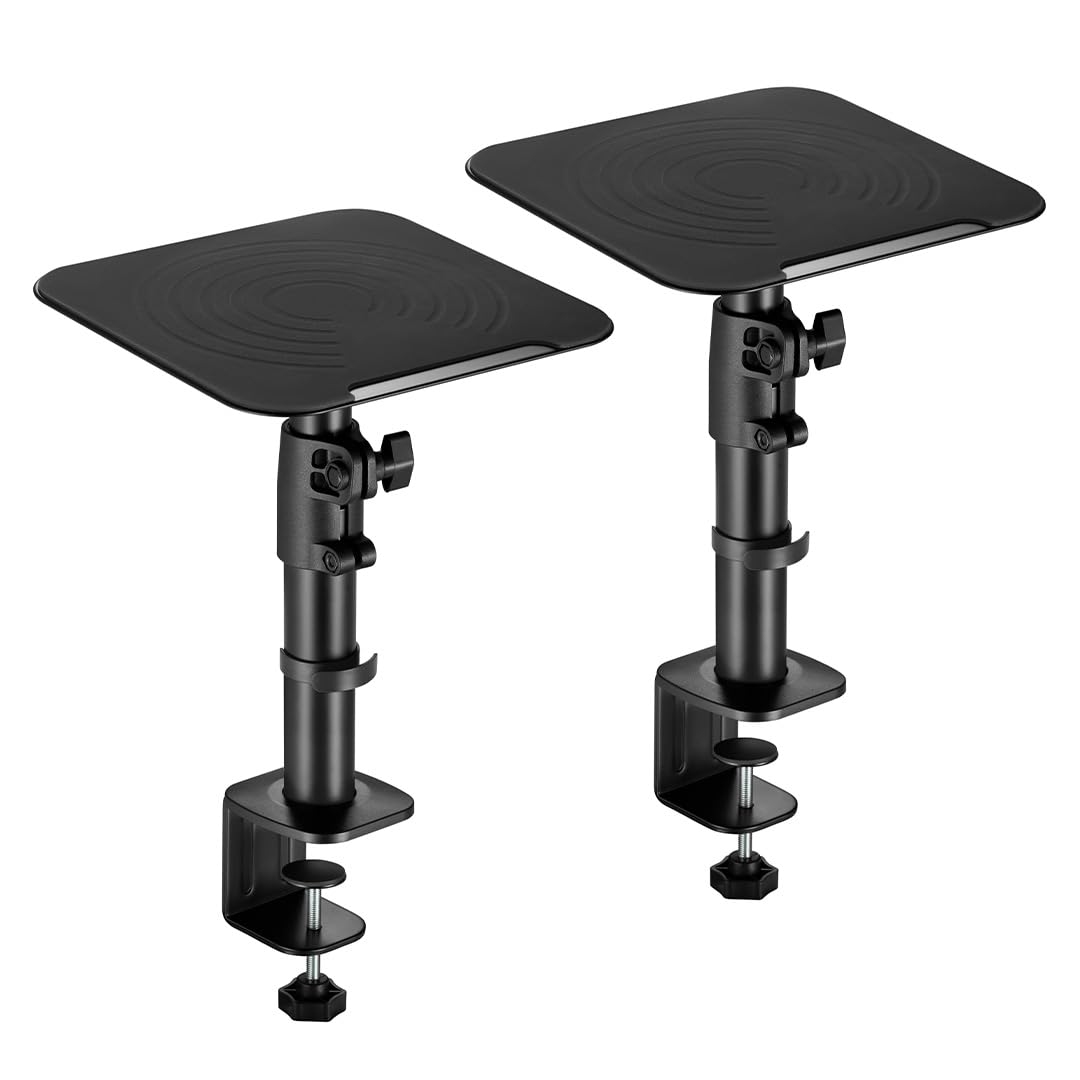

User Guide for Audio Array AA-21 Desktop Mount Speaker Stands

---

Table of Contents

1. Introduction
2. Package Inclusions
3. Features and Technical Specifications
4. Setup Instructions
5. Usage Guide
6. Troubleshooting
7. Warranty and Support

---

1. Introduction

Thank you for choosing the Audio Array AA-21 Desktop Mount Speaker Stands. These adjustable stands are designed to enhance your sound editing, gaming, and music production experience by providing a stable and ergonomic solution for your speakers. With features such as adjustable height, tilt, and rotation, along with smart cable management, these stands offer versatility and convenience.

2. Package Inclusions

• 2 x Speaker Stands
• 2 x Upgraded Clamps

3. Features and Technical Specifications

Solution to Expand Desk Space:

• Clamps on your desktop to save valuable space in your studio

Adjustable Height and Tilt:

• Height adjustable from 10.4’’ to 15.9’’
• Tray tilt angle adjustable from 0° to 15°
• 180° rotation to direct sound towards your ears

Anti-Slip & Anti-Vibration Pads:

• Vibration-reducing top silicone isolating pad
• Prevents desk vibrations and reverberations
• Provides essential gripping for speakers

Stable 15KG Weight Capacity:

• 9” x 9” speaker platform holder supports up to 15KG
• Universal table stand for most studio monitors, speakers, home theater systems, and projectors

Durable Steel Metal Stands:

• Made from premium steel with a matte finish
• Weighted and heavy enough to ensure stability and durability

4. Setup Instructions

1. Unbox and Inspect:

   • Remove all items from the package and ensure everything is present.

2. Attach the Clamps:

   • Secure the upgraded clamps to the base of each speaker stand.
   • Tighten the clamps onto your desktop or table edge.

3. Adjust the Height:

   • Loosen the height adjustment knob on the stand.
   • Raise or lower the stand to your desired height (10.4’’ to 15.9’’).
   • Tighten the knob to secure the height.

4. Adjust the Tilt and Rotation:

   • Loosen the tilt adjustment knob to set the tray tilt angle (0° to 15°).
   • Adjust the rotation of the stand to position the speakers towards your ears.
   • Tighten the knob to lock the angle and rotation in place.

5. Place the Speakers:

   • Position your speakers on the 9” x 9” platform holder.
   • Ensure the speakers are stable and secure on the anti-slip and anti-vibration pads.

6. Cable Management:

   • Use the smart cable management system to organize and secure your speaker cables.

5. Usage Guide

Optimal Positioning:

• Adjust the height, tilt, and rotation to direct the sound towards your ears for the best listening experience.
• Ensure the stands are stable and the speakers are securely positioned on the anti-slip pads.

Cable Management:

• Keep your workspace tidy by routing the cables through the cable management system.
• Ensure cables are not strained or pinched.

6. Troubleshooting

Stand Not Stable:

• Ensure the clamps are securely tightened to the desktop.
• Verify that the height and tilt adjustment knobs are fully tightened.

Speakers Sliding:

• Check that the anti-slip pads are clean and properly positioned.
• Ensure the speakers are not too heavy for the stands (maximum weight capacity is 15KG).

Cable Management Issues:

• Reorganize the cables to avoid tangling or strain.
• Use additional cable ties if necessary to secure the cables.

7. Warranty and Support

The Audio Array AA-21 is covered under a 1-year warranty against any manufacturing defects. For any queries, please contact our customer care team at:

• Phone: +91 9372146440
• Email: support@audioarray.in

---

Thank you for choosing the Audio Array AA-21 Desktop Mount Speaker Stands. We hope this guide helps you get the most out of your speaker stands. Enjoy enhanced sound quality and a more organized workspace!
