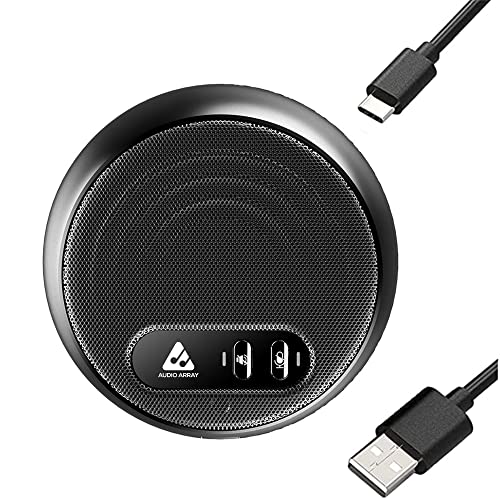

Audio Array AM-C10 USB Plug & Play Conference Microphone & Speaker: User Guide

Welcome to the user guide for the Audio Array AM-C10 USB Plug & Play Conference Microphone & Speaker. This device is ideal for meetings and video calls, offering omnidirectional sound pickup, easy plug-and-play functionality, and independent mute buttons for both the speaker and microphone.

Technical Details

  • Microphone Type: Omnidirectional
  • Pickup Range: 360° sound pickup up to 4 meters
  • Noise Reduction: Built-in noise reduction and echo elimination
  • S/N Ratio: 68dB
  • Sensitivity: -33dB±3dB
  • Frequency Response: 70Hz-20kHz
  • Maximum SPL: 94dB
  • Connection: USB 2.0
  • Cable Length: 2 meters
  • Compatibility: Windows, Mac, and major conferencing platforms (Google Meeting, Zoom, Skype, GoToMeeting, Teams, Hangouts, Fuze, etc.)
  • Control Buttons: Independent mute buttons for microphone and speaker
  • Indicator Lights: Status indicators for microphone and speaker

Superior Sound

The AM-C10 features an omnidirectional microphone that captures 360° sound within a 4-meter range, making it perfect for group meetings with 4-6 participants. The built-in noise reduction technology eliminates echo, ensuring clear audio quality. With a 68dB S/N ratio and -33dB±3dB sensitivity, the AM-C10 offers a wide frequency response (70Hz-20kHz) and high SPL (94dB) for superior sound performance.

One Button Mute

The AM-C10 includes independent mute buttons for both the microphone and speaker, along with indicator lights to show the status. This feature allows you to manage your meetings more efficiently, muting your mic and speaker as needed during a call.

Plug & Play

The AM-C10 operates on a USB 2.0 connection, providing easy plug-and-play functionality with no need for additional drivers or software. It is compatible with both Windows and Mac operating systems and works seamlessly with popular conferencing platforms like Google Meeting, Zoom, Skype, GoToMeeting, Teams, Hangouts, and Fuze. This makes it ideal for online meetings, teaching, and video calls.

Warranty Details

The AM-C10 comes with a 2-year warranty against any manufacturing defects. For any other queries or support, please contact our dedicated customer care team for prompt assistance.

Customer Guidance

Getting Started:

  1. Connect the Device: Plug the USB cable into an available USB port on your computer.
  2. Set Up: No drivers or software are needed. The device will be recognized automatically.
  3. Position the Microphone: Place the AM-C10 in the center of the meeting area for optimal sound pickup.

Usage Tips:

  • Ensure Stability: Place the microphone on a stable surface to avoid movement and ensure consistent audio quality.
  • Mute Functionality: Use the independent mute buttons to manage your audio input and output efficiently during meetings. The indicator lights will show the current status of the microphone and speaker.
  • Compatibility: Ensure your conferencing software recognizes the AM-C10 as the default microphone and speaker.

What You Get

The package includes:

  • 1 x AM-C10 USB Plug & Play Conference Microphone & Speaker
  • 1 x 2-meter USB cable

Ensure you have all these components before starting your conference sessions with the Audio Array AM-C10. Enjoy professional-quality sound and easy setup with this comprehensive conference microphone and speaker.
