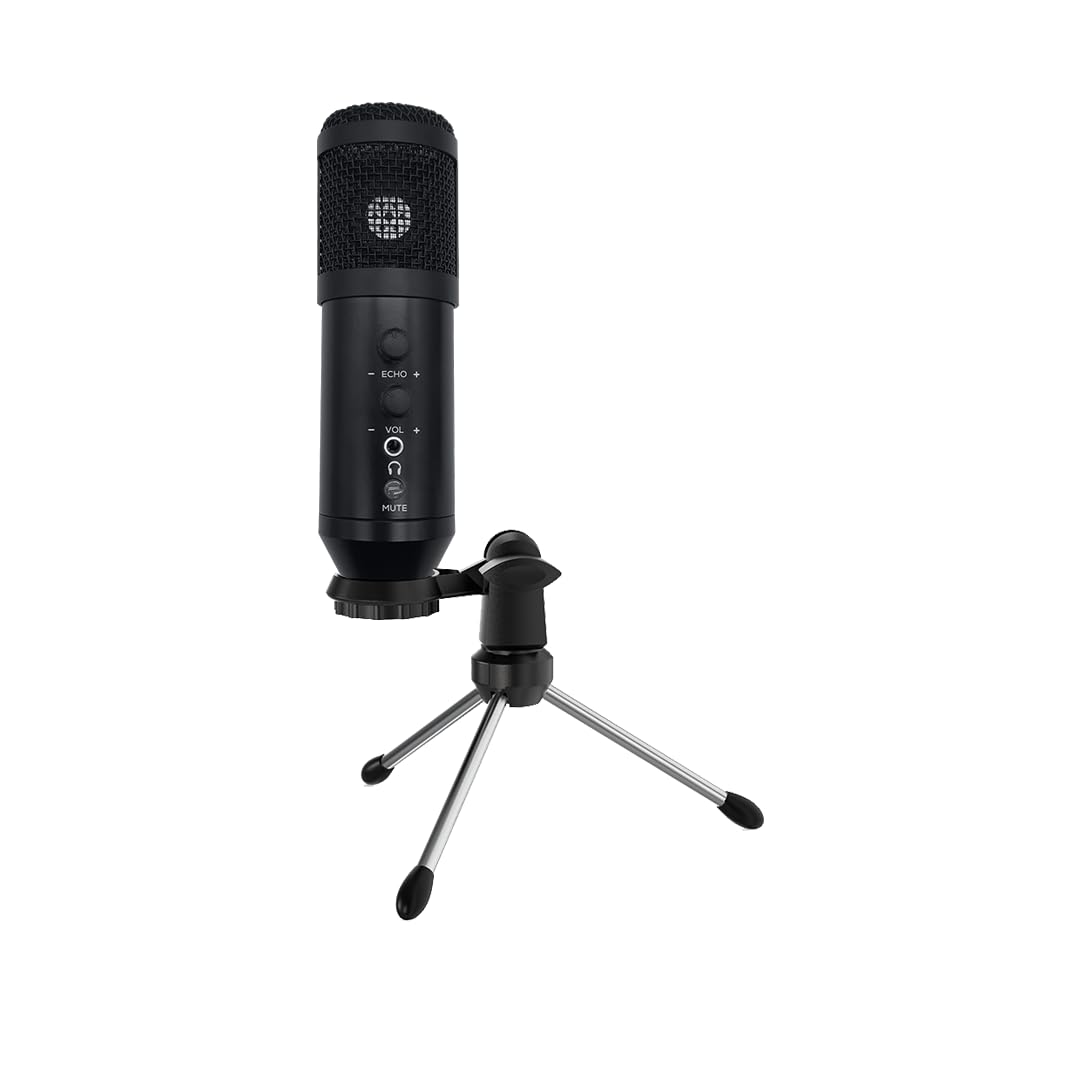

User Guide for Audio Array AM-C41 Plug & Play Noise Cancelling USB Condenser Microphone


Table of Contents

  1. Introduction
  2. Package Inclusions
  3. Features and Technical Specifications
  4. Setup Instructions
  5. Usage Guide
  6. Troubleshooting
  7. Warranty and Support

1. Introduction

Thank you for choosing the Audio Array AM-C41 Plug & Play Noise Cancelling USB Condenser Microphone. This versatile microphone is ideal for a range of applications including gaming, live streaming, podcasting, and more. With its easy plug-and-play functionality and professional-grade audio capture, the AM-C41 is designed to enhance your recording experience.

2. Package Inclusions

  • 1 x USB Condenser Microphone
  • 1 x Tripod Stand
  • 1 x Wind Filter
  • 1 x USB-A to USB B Cable

3. Features and Technical Specifications

Multi-Purpose Condenser Microphone:

  • Cardioid polar pattern for versatile recording capabilities
  • Ideal for gaming, live streaming, YouTube videos, podcasting, and more

High-Quality Audio Capture:

  • Frequency Response Rate: 20Hz-20KHz
  • Sensitivity: -36dB±2dB
  • Signal-to-Noise Ratio: 70dB
  • Maximum SPL: 110dB

Plug & Play Functionality:

  • USB power supply (5VDC) with a USB output interface
  • Compatible with Mac OS, Windows, and mobile phones
  • No additional drivers or software required

Precise Control & Sampling:

  • Volume control knob for easy adjustment
  • Sampling frequency: 48KHz/16bit

4. Setup Instructions

  1. Unbox and Inspect:

    • Remove all items from the package and ensure everything is present.
  2. Assemble the Microphone:

    • Attach the microphone to the tripod stand.
    • Place the wind filter over the microphone to reduce breath and wind noise.
  3. Connecting the Microphone:

    • Use the USB A to USB B cable to connect the microphone to your computer or mobile device.
    • The microphone will power on automatically when connected.
  4. Configuration:

    • Select the AM-C41 as your input device in your computer’s sound settings or recording software.
    • Adjust the volume control knob on the microphone to the desired level.

5. Usage Guide

Recording:

  • Position the microphone close to your mouth for optimal sound capture.
  • Use the volume control knob to adjust the input level.
  • Monitor your recording levels in your recording software to avoid distortion.

Streaming/Gaming:

  • Ensure the microphone is positioned properly to capture your voice clearly.
  • Adjust the echo and volume controls as needed for your streaming setup.
  • Use the mute button to quickly silence the microphone when needed.

6. Troubleshooting

No Sound:

  • Check all cable connections.
  • Ensure the microphone is selected as the input device in your sound settings or recording software.
  • Verify the volume levels are not muted or too low.

Distorted Audio:

  • Reduce the volume level using the control knob on the microphone.
  • Ensure the microphone is not too close to the sound source.
  • Check for any obstructions in the microphone’s path.

Device Not Recognized:

  • Reconnect the USB cable.
  • Try a different USB port on your computer.
  • Restart your computer and the microphone.

7. Warranty and Support

For any questions or support, please contact our customer service team. The Audio Array AM-C41 is covered under a 2-year warranty.


Thank you for choosing the Audio Array AM-C41. We hope this guide helps you get the most out of your noise-cancelling USB condenser microphone. Enjoy your high-quality recordings!
