Audio Array AM-W11 Wireless Mic: User Guide

Welcome to the user guide for the Audio Array AM-W11 Wireless Mic. This wireless microphone system is designed to enhance your audio recording experience with up to 4 hours of battery life, a 60-meter range, and convenient volume and mute buttons with indicators. It’s ideal for streaming, vlogging, YouTube, and other content creation purposes. The package includes 1x Lapel mic, a Type C Adapter for Plug & Play, and comes with a 2-year warranty.

Technical Details
- Frequency Range: 30Hz to 20kHz
- Transmission Range: Up to 60 meters (in open areas)
- Sampling Rate: 48kHz/16Bit
- Battery Life: Up to 4 hours
- Charging Time: Approximately 1.5 hours
- Connectivity: 2.4 GHz UHF, Type C Adapter, 3.5mm TRS to TRS/ TRRS Cables
- Compatibility: Smartphones, DSLR cameras, laptops
- Weight: Lightweight and portable design for easy carrying

UHF Technology & Noise Reduction
The Audio Array AM-W11 Wireless Lavalier Microphone operates on the 2.4 GHz UHF frequency, offering a strong and stable signal superior to Wi-Fi and Bluetooth connections. This ensures crystal clear sound recording by effectively suppressing wind and background noise. With a frequency range of 30Hz to 20kHz, it is compatible with mainstream smartphones, DSLR cameras, and laptops. Whether you are vlogging, creating content, filmmaking, presenting on stage, live streaming, podcasting, or more, this microphone delivers excellent performance.

Single Channel Long Range Transmission
This wireless lavalier microphone system supports omnidirectional audio recording through one transmitter, ensuring high-fidelity audio capture. It offers a 60-meter transmission range in open areas and has a sampling rate of 48kHz/16Bit. This ensures that your recordings are clear and detailed.

Portable & Long Battery Life
The transmitter and receiver are lightweight, making them comfortable to wear and easy to carry. The wireless microphone requires only 1.5 hours to charge and provides up to 4 hours of continuous use, ensuring that you can record without interruptions.

Built-In Microphone & Volume Control
The microphone features a built-in high-performance microphone that delivers clear sound quality. Additionally, it comes with an extra plug microphone and a furry windshield designed to reduce wind noise during outdoor recordings. The output volume can be controlled directly on the microphone, providing you with flexibility in managing your audio levels.

Customer Guidance
Getting Started:
1. Charge the Microphone: Use the 2-in-1 charging cable to fully charge the transmitter and receiver (approximately 1.5 hours).
2. Connect the Microphone: Plug the Type C adapter into your smartphone, or use the 3.5mm TRS/TRRS cables for DSLR cameras and laptops.
3. Pair the Devices: Turn on the transmitter and receiver. They will pair automatically within a few seconds.
4. Adjust Settings: Use the volume control and mute buttons to adjust audio levels as needed.

Usage Tips:
- Optimal Range: For best performance, ensure you are within the 60-meter range in an open area.
- Wind Protection: Use the furry windshield when recording outdoors to minimize wind noise.
- Battery Management: Keep an eye on battery levels and charge the devices regularly to avoid interruptions during recording.

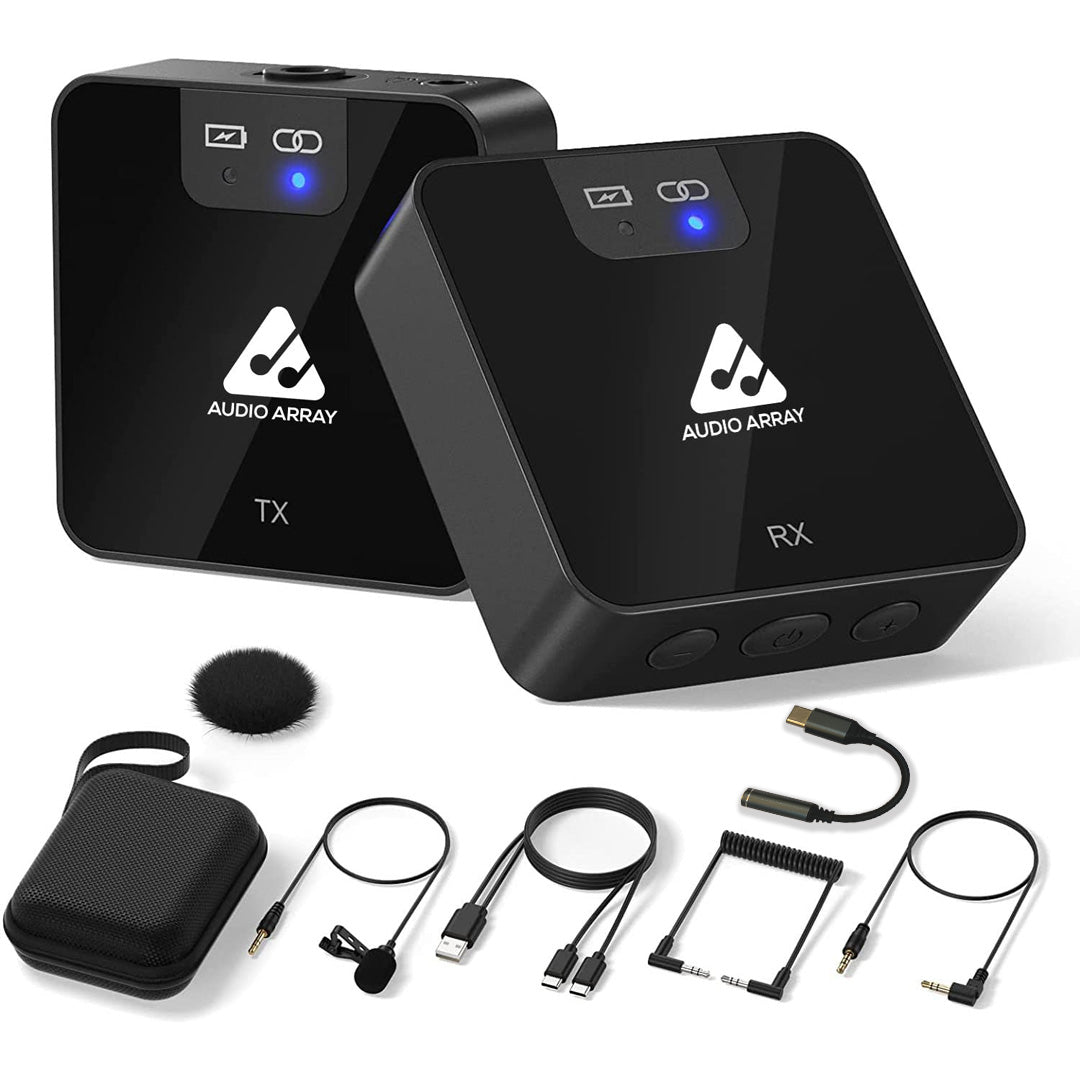

 What You Get
The Audio Array AM-W11 Wireless Mic package includes:
- 1 x Transmitter
- 1 x Receiver
- 1 x Lavalier Microphone
- 1 x 3.5mm TRS to TRS Cable
- 1 x 3.5mm TRS to TRRS Cable
- 1 x Furry Windshield
- 1 x Carrying Bag
- 1 x 2-in-1 Charging Cable
- 1 x Type C Adapter for phones

Ensure you have all these components before starting your recording journey with the Audio Array AM-W11 Wireless Mic. Enjoy the freedom and clarity of wireless audio recording!
