User Guide for Audio Array AM-W16 Solo Wireless Lapel Mic


Table of Contents

  1. Introduction
  2. Package Inclusions
  3. Features and Technical Specifications
  4. Setup Instructions
  5. Usage Guide
  6. Troubleshooting
  7. Warranty and Support

1. Introduction

Thank you for choosing the Audio Array AM-W16 Solo Wireless Lapel Mic. This microphone offers pristine audio quality, effortless setup, and long-lasting battery life, making it perfect for vlogging, streaming, teaching, and content creation. With built-in ANC and ultra-low latency, the AM-W16 enhances your recording experience.

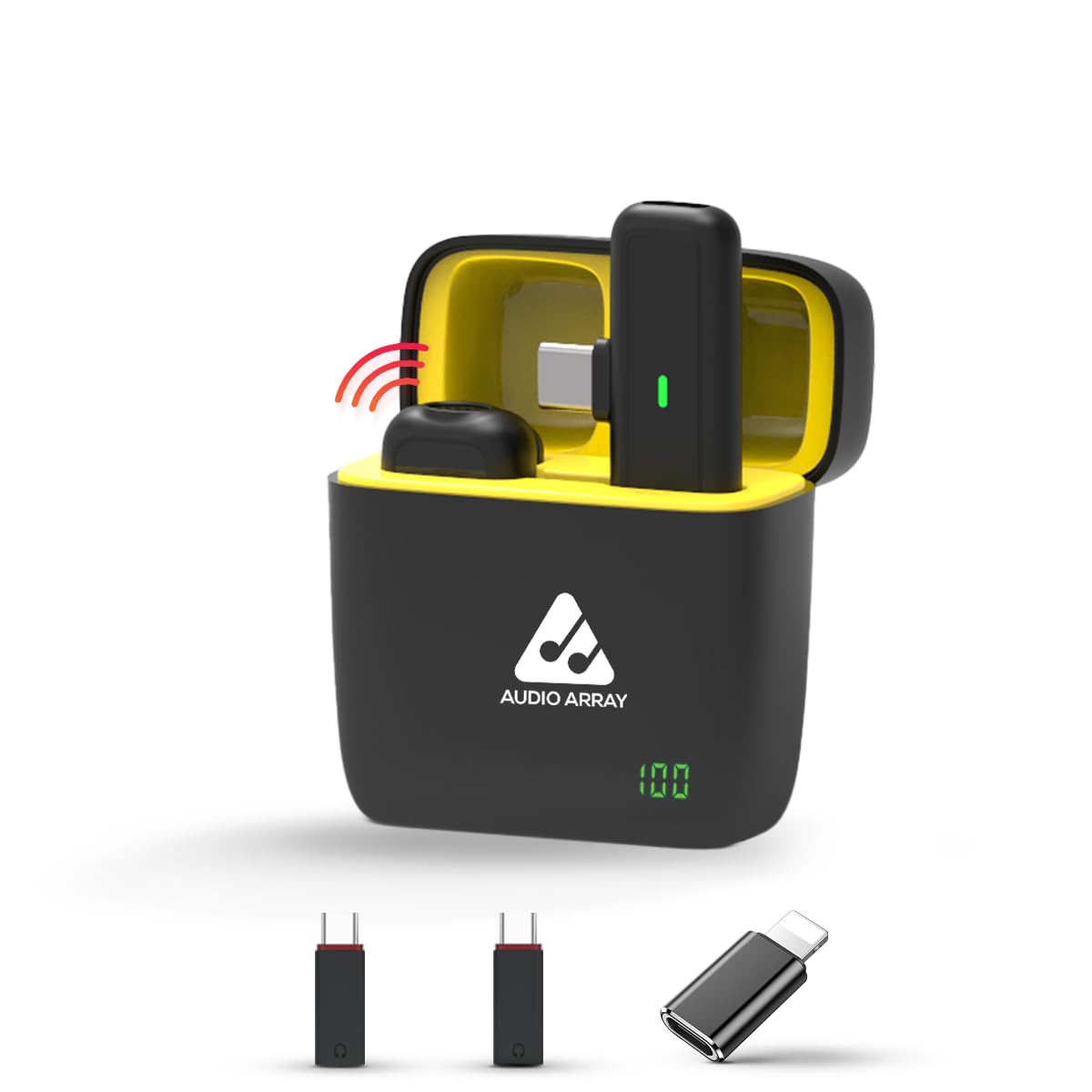

2. Package Inclusions

  • 1 x Wireless Lapel Microphone
  • 1 x USB-C Charging Case (300mAh)
  • 1 x USB Type-C to Lightning Adapter
  • 1 x User Manual

3. Features and Technical Specifications

Crystal Clear Sound:

  • Audio quality: 48kHz/16bit, 20Hz-20kHz
  • JIELI DSP chipset minimizes background noise
  • Clip-on design for excellent sound recording

Long-lasting Charging Case:

  • Up to 24 hours of usage with the charging case
  • 4-6 hours per microphone on a full charge
  • Battery levels displayed on both the mic and charging case

Plug and Play & Auto Pairing:

  • Effortless setup with auto-sync
  • No app or Bluetooth needed
  • Compatible with Android and iPhone (Lightning adapter included)

Omnidirectional Pickup:

  • Picks up omni-directional sound
  • Ideal for vlogging, video recording, and live streaming

70 Ft Long Range Recording:

  • Maximum effective distance of 70-100 feet
  • Steady and low-latency recording for long-distance use

Compatibility:

  • USB Type-C devices and iPhone
  • Includes Lightning adapter for iPhone 15 and iPad
  • Suitable for video recording, podcasting, vlogging, TikTok, YouTube, Instagram, Facebook, and more

4. Setup Instructions

  1. Unbox and Inspect:

    • Remove all items from the package and ensure everything is present.
  2. Charging the Microphone:

    • Place the microphone in the USB-C charging case.
    • Connect the case to a power source using the included USB-C cable.
    • Charge until the battery level indicators show full charge.
  3. Connecting the Microphone:

    • For Android devices: Plug the microphone into the USB-C port.
    • For iPhone devices: Attach the Lightning adapter and plug into the iPhone.
  4. Auto Pairing:

    • The microphone will automatically pair with your device.
    • No additional setup is required.

5. Usage Guide

Recording:

  • Clip the microphone to your shirt or desired location.
  • Ensure the microphone is positioned close to your mouth for optimal sound capture.
  • Start recording on your device.

Android Users:

  • If the connection is unsuccessful, enable the OTG feature in settings.
  • If unable to use the default camera app for video recording, download a third-party app like "Open Camera":
    • Open the "Open Camera" app.
    • Go to Settings within the app.
    • Navigate to Video Settings.
    • Click on Audio Source and select External Mic.

Adjusting Settings:

  • Use the volume controls on your device to adjust the microphone input level if necessary.
  • Monitor the battery levels on the microphone and charging case to ensure continuous operation.

Long-Range Recording:

  • Ensure you are within the effective range of 70-100 feet for optimal performance.
  • Avoid obstructions between the microphone and the recording device to maintain a stable connection.

6. Troubleshooting

No Sound:

  • Ensure the microphone is securely connected to the device.
  • Check that the microphone is selected as the input source in your device’s audio settings.
  • Verify the microphone is powered on and sufficiently charged.

Distorted Audio:

  • Reduce the input volume level on your device.
  • Ensure the microphone is not too close to the sound source.
  • Check for any obstructions or interference affecting the connection.

Connection Issues:

  • For Android devices, ensure OTG is enabled in settings.
  • Try reconnecting the microphone to the device.
  • Restart your device and reattempt the connection.

7. Warranty and Support

The Audio Array AM-W16 is covered under a 1-year warranty against any manufacturing defects. For any queries or support, please contact our customer care team at:


Thank you for choosing the Audio Array AM-W16 Solo Wireless Lapel Mic. We hope this guide helps you get the most out of your microphone. Enjoy your high-quality recordings!
